HORIZONTAL DIRECTIONAL DRILLING

gallery/srm

Al Hout Trading and Contracting Establishment was established in the year of 2001 as a Trading and contracting company. And started The division for Horizontal Directional Drilling (H.D.D Works) company in 2009. When you need to drill solid rock for long distance that calls for our JT4020 All Terrain HDD system, which can steer, drill and backream in just about any type of soil up to 1000 feet.

TECHNOLOGY

Al Hout Trading and Contracting Establishment is providing the innovative technology that is used, for the trench-less installation of pipes and cables. It is a gentle technology that uses a drilling suspension and replaces the brutality of open cut trenching. Al Hout Trading and Contracting Establishment minimises the ripping up of streets and pavements, it reduces stress, less mess, less noise and less traffic congestion.

PROCEDURE

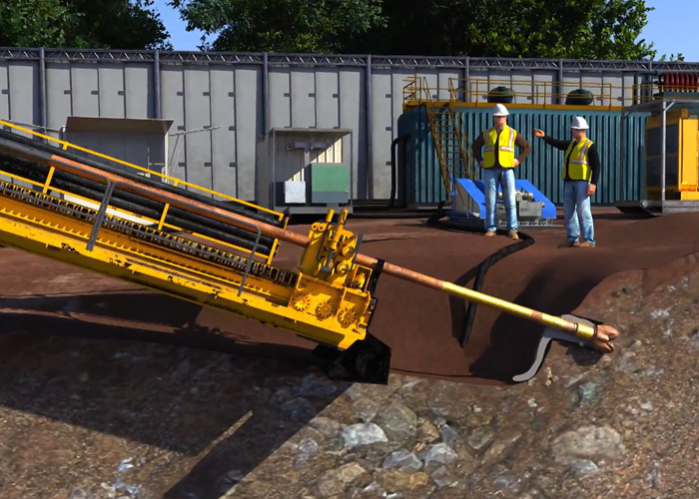

THE PILOT HOLE

A start pit is produced and the remotely controlled drill tool is advanced underground. High pressure drilling suspension is emitted from the threedimensional drill tool, which rotates through the ground forming the pilot hole or tunnel. Larger spoils are pressed against the walls of the tunnel and finer particles of earth are transported along the tunnel with the aid of the environmentally safe drilling fluid, to the start pit or the target pit.

gallery/seim

WIDENING THE PILOT HOLE

The remotely controlled rotating drill tool reaches the target pit with complete accuracy, the relevant reamer for the job is then attached and the pilot hole is widened to enable the simultaneous installation of the product.

INSTALLING THE PRODUCT

The product (pipe or cable) is attached directly behind the reamer. The Bentonite drilling suspension enables the installation to be carried out smoothly and without damaging the product. This drilling suspension acts as a lubricant and helps to reduce friction in the tunnel.
